Decanter Centrifuge

Decanter Centrifuge Manufacturer, Supplier & Exporter

MGK Industries is a decanter centrifuge manufacturer, supplier and exporter based in Navi Mumbai, India. We manufacture bowl shell assemblies, conveyor (scroll) assemblies and complete rotating bowl assemblies for decanter centrifuges and supply fully reconditioned decanters that perform like new at a fraction of the cost. Our assemblies are built for Pennwalt (Sharples) type and Alfa Laval type decanters and match OEM dimensions, tolerances and material specifications.


What Is a Decanter Centrifuge?

A decanter centrifuge is a horizontal, continuously operating machine that separates solids from liquids using centrifugal force. The cylindrical-conical bowl rotates at high speed, so the heavier solids settle on the bowl wall. A screw conveyor (scroll) inside the bowl turns slightly slower than the bowl and pushes the solids to the conical end, where they are discharged as a dewatered cake. The clarified liquid flows out at the other end over adjustable weir (dam) plates.

A 2-phase decanter separates solids from one liquid. A 3-phase decanter separates two liquids of different density, such as oil and water, together with the solids. The speed difference between bowl and scroll is set by a planetary gearbox, so the gearbox, bowl and conveyor are the most critical parts of any decanter.

Our Decanter Centrifuge Product Range

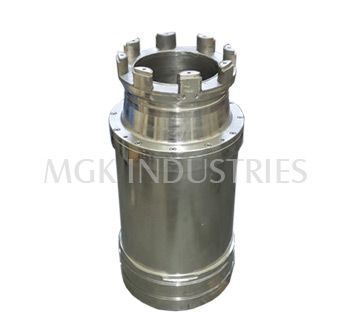

Bowl Shell Assembly

The bowl shell holds the liquid pond and creates the separating G-force. We manufacture bowl shells in stainless steel with precise concentricity and balance, ready to fit Pennwalt type and Alfa Laval type decanters.

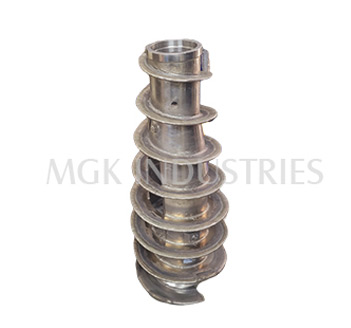

Conveyor (Scroll) Assembly

The conveyor moves solids out of the bowl. Its flights face constant abrasion, so we protect them with tungsten carbide tiles or stellite hard-facing for long wear life.

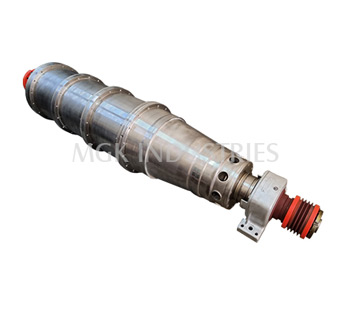

Rotating Bowl Assembly

A complete rotating assembly with bowl, conveyor, hubs and bearings, supplied ready to install. It is the fastest way to restore a decanter with a worn or damaged rotating group.

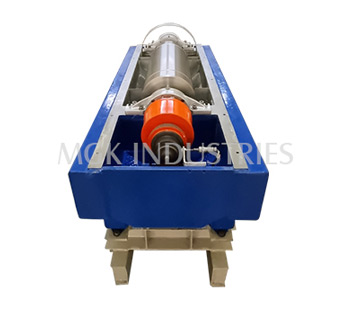

Reconditioned Decanters

Fully overhauled decanter centrifuges rebuilt with new wear parts, bearings and seals and tested before dispatch. A cost-effective alternative to a new machine, with shorter delivery.

Compatible Decanter Models

We manufacture assemblies and supply reconditioned machines for the following decanter types. If your model is not listed, send us the make, model and serial number.

Decanter typeModels
Alfa Laval typeNX 414, NX 416, NX 418, NX 4030, NX 4050, NX 934, ALDEC 10, ALDEC 20, ALDEC 30, ALDEC 40, SGDM 400, PONX 934, SG2 100
Pennwalt (Sharples) typeP 1500, P 2000, P 3000, P 3400, PM 20000, PM 30000, PM 35000, PM 36000

Applications of Decanter Centrifuges

  • Edible oil and vegetable oil refining – soapstock, gums and wash water separation
  • Wastewater and sludge dewatering – municipal STPs and industrial ETPs
  • Olive oil, palm oil and fish oil – 3-phase oil, water and solids separation
  • Starch, food and beverage processing – clarification and product recovery
  • Distilleries and ethanol plants – spent wash and stillage dewatering
  • Chemical, pharmaceutical and mineral processing – crystals, catalysts and slurries
  • Oil field and refinery – drilling mud and oily sludge treatment

Why Choose MGK Industries for Decanter Centrifuges?

  • OEM-equivalent quality – 100% interchangeable with OEM dimensions, tolerances and material specifications
  • Ready stock – about 90% of spare part orders are dispatched the same day the order is placed
  • One supplier for the whole decanter – assemblies, decanter spare parts, planetary gearboxes and reconditioning services
  • Wear protection in-house – tungsten carbide tiles, stelliting and hard-surfacing for longer conveyor life
  • Global exporter – regular supply to Europe, North America and South America through our export division
  • Lower cost of ownership – reconditioned machines and assemblies cost far less than new OEM equipment

How We Recondition a Decanter Centrifuge

  1. Inspection – complete strip-down and condition report of bowl, conveyor, hubs, bearings and gearbox.
  2. Repair and replacement – worn parts are re-machined or replaced with OEM-equivalent parts.
  3. Wear protection – conveyor flights are re-tiled with tungsten carbide or hard-faced.
  4. Gearbox overhaul – the planetary gearbox is overhauled or exchanged.
  5. Balancing and testing – the rotating assembly is balanced and the machine is test-run before dispatch.

Read more about our decanter reconditioning services.

Frequently Asked Questions

Does MGK Industries manufacture decanter centrifuge assemblies?

Yes. We manufacture bowl shell assemblies, conveyor (scroll) assemblies and complete rotating bowl assemblies for decanter centrifuges, and we supply fully reconditioned decanters.

Which decanter makes do you support?

We support Pennwalt (Sharples) type and Alfa Laval type decanters, including models such as P 2000, P 3400, PM 30000, NX 418, NX 4050 and ALDEC 20.

Are your assemblies interchangeable with OEM parts?

Yes. Our assemblies match OEM dimensions, tolerances and material specifications, so they fit without modification.

What is a reconditioned decanter centrifuge?

It is a used decanter that has been stripped, inspected, repaired with new wear parts, bearings and seals, balanced and test-run. It performs like a new machine at a lower cost and with faster delivery.

Do you export decanter centrifuges and assemblies?

Yes. We export to Europe, North America and South America, including Germany, Italy, Spain, Russia, the United States, Mexico, Brazil and Chile.

How can I get a quotation?

Send your decanter make, model, serial number and application through our enquiry form, by email to info@mgkinds.com or on WhatsApp at +91 98212 22134.
