Acid Separators

Disc Type Separator & Acid Separator Manufacturer, Supplier, Exporter

MGK Industries is a manufacturer, supplier and exporter of disc type separators (disc stack centrifuges) based in Navi Mumbai, India. Our range includes chemical and nitric acid separators built for corrosive duty, and fully reconditioned edible oil, nozzle and marine separators that give you OEM-level performance at a lower cost.


How Does a Disc Type Separator Work?

A disc type separator is a vertical, high-speed centrifuge. Inside the bowl, a stack of thin conical discs divides the liquid into many narrow layers, which multiplies the settling area. Heavier liquid and fine solids move outward along the discs to the bowl wall, while the lighter liquid moves inward and leaves through a separate outlet. This lets a compact machine remove very fine particles and droplets at high flow rates.

  • Clarifier – removes fine solids from one liquid
  • Purifier – separates two liquids of different density and removes solids
  • Self-cleaning separator – discharges solids automatically for continuous operation
  • Nozzle separator – discharges solids continuously through nozzles, for feeds with high solids

Our Disc Type Separator Range

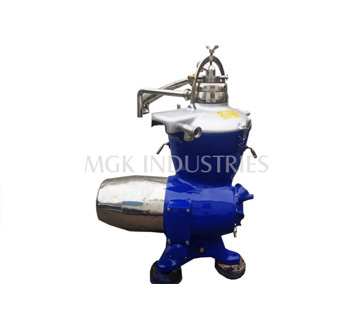

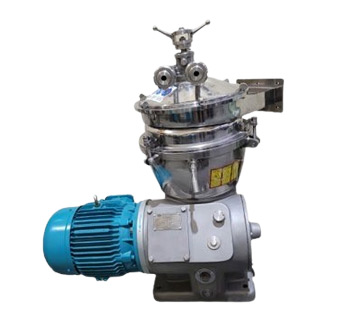

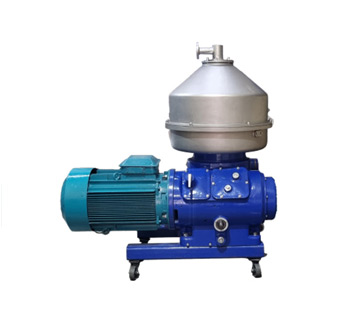

Chemical / Nitric Acid Separators

Separators for acidic and corrosive process liquids, with wetted parts in corrosion-resistant materials. Used in chemical plants, nitration processes and acid–oil separation.

Reconditioned Edible Oil Separators

Pennwalt type edible oil centrifuges, separators and purifiers for degumming, neutralising and washing, including models such as SRG 509, SRG 610, VLG 206, VLB 206 and SSB 206.

Reconditioned Nozzle Separators

Nozzle separators for continuous discharge of solids, used in starch, yeast and other high-solids applications. Fitted with tungsten carbide nozzles for long wear life.

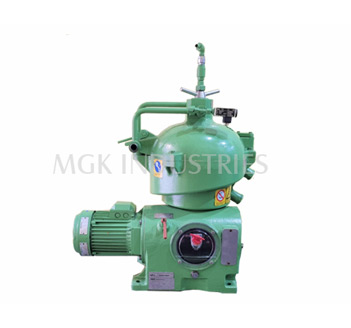

Reconditioned Marine Separators

Fuel oil and lube oil purifiers for ships and power plants, overhauled and tested to restore reliable, clean fuel and oil treatment.

Applications of Disc Type Separators

  • Edible oil refining – degumming, neutralising, washing and drying
  • Chemical and acid processing – acid–oil separation and acid sludge removal
  • Marine and power plants – fuel oil and lube oil purification
  • Starch, yeast and fermentation – concentration and washing
  • Biodiesel – glycerine and wash water separation
  • Dairy, juice and beverage – clarification

Benefits of Reconditioned Separators from MGK

  • Lower cost than a new separator, with shorter delivery
  • OEM-equivalent parts – 100% interchangeable with OEM dimensions, tolerances and material specifications
  • Overhauled bowl and drive, new seals and bearings, balanced and tested before dispatch
  • Full spares support – separator spare parts and separator reconditioning services
  • Exports to Europe, North America and South America

Frequently Asked Questions

What is a disc type separator used for?

A disc type separator removes fine solids from a liquid or separates two liquids of different density, for example oil and water, at high flow rates.

What is an acid separator?

An acid separator is a disc type separator whose wetted parts are made from corrosion-resistant materials, so it can run continuously on acidic and corrosive process liquids such as nitric acid mixtures.

Do you supply reconditioned separators?

Yes. We supply reconditioned edible oil, nozzle and marine separators that are overhauled, balanced and tested before dispatch.

Which edible oil separator models do you support?

We support Pennwalt type edible oil separators and purifiers, including models such as SRG 509, SRG 610, VLG 206, VLB 206 and SSB 206.

Do you also supply separator spare parts?

Yes. We supply separator spare parts and tungsten carbide nozzles, and we recondition disc type separators.
